How teamspace is built

The mental model behind the on-premises installation: Tomcat, Java, database, reverse proxy and the central configuration files – and how requests flow through the system.

Before you install teamspace, it is worth taking a look at the architecture. Once you know the building blocks and their configuration files, you understand the installation steps as a whole – rather than just typing them out – and you find faults more quickly later.

The building blocks

teamspace is a Java web application. It consists of these components:

  • Apache Tomcat 10 – the application server. This is where the teamspace .war is deployed (unpacked into the webapp directory). The Tomcat listens internally on port 8080.
  • OpenJDK 17 (Temurin) – the Java runtime that the Tomcat runs on.
  • MySQL 8 / MariaDB 10.5 – the database with the projectfacts user and schema.
  • Reverse proxy (Apache 2.4 or Nginx 1.24) – receives the requests from the internet on port 80/443, terminates the SSL/TLS certificate and forwards them internally to the Tomcat on localhost:8080.
  • userfiles directory – the file storage area of the file module. It resides outside the application (e.g. /srv/projectfacts/userfiles or C:\projectfacts\userfiles) and can be moved to a separate disk.

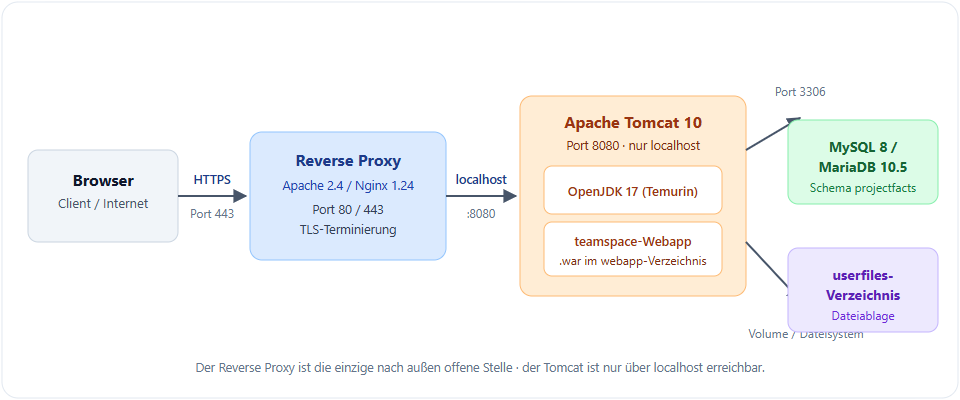

Architecture diagram: the browser/client reaches the reverse proxy (Apache 2.4 / Nginx 1.24, port 80/443, TLS termination) over HTTPS (port 443); the proxy forwards internally to Tomcat 10 (port 8080, localhost only) with OpenJDK 17 and the teamspace web app; the Tomcat talks to the database (MySQL 8 / MariaDB 10.5, port 3306) and the userfiles directory.
Components and data flow: Client → reverse proxy (80/443) → Tomcat (8080) → database/userfiles

The path of a request

Browser/Client  ──HTTPS (443)──▶  Reverse proxy (Apache/Nginx)
                                        │  decrypts TLS,
                                        │  sets X-Forwarded-Proto
                                        ▼
                                   Tomcat (8080)  ──▶  teamspace web app (Java)
                                        │
                                        ▼
                            MySQL/MariaDB (3306)   +   userfiles directory

The reverse proxy is the only point exposed to the outside. The Tomcat itself is only reachable from localhost – with Docker, this is additionally secured via iptables.

The central configuration files

During an installation, you work with the same four files again and again. It helps to keep their roles apart:

FileRole
web.xml (webapp/WEB-INF/web.xml)Application parameters (context-param): paths to htdocs/data, mail-fetch interval (timer.mailfetcher), permitted mail recipients (mail.positive_mail_list), server URL (server.url), OAuth/PDF service.
ROOT.xml or context.xmlThe database connection (connection pool). Since version 2023.4, the Tomcat manages the pool through a Resource with username, password and url. Previously this was held in data-source.xml.
server.xml (Tomcat)The Tomcat itself: connector, host (unpackWARs="false", autoDeploy="false"), listeners.
deploy-war script (deploy-war.sh / .bat / -docker.sh)Unpacks a new .war while preserving the existing configuration. It knows the installation path through the BASEDIR variable.

Important: The ROOT.xml/context.xml with the database credentials is not overwritten during an update – the deploy script ensures this. If you make your own changes to the script, take particular care here.

Standard, Docker and “partial containerisation”

There are two ways to operate the system:

  • Standard installation (Linux/Windows): Tomcat, Java, the database and the reverse proxy all run directly on the operating system.
  • Docker (Linux only): Only Tomcat and Java sit in a container. MySQL/MariaDB, the teamspace application and the userfiles still run on the host – they are mounted into the container through volumes, and the Tomcat reaches the database via the Docker network at 172.17.0.1. This “partial containerisation” is intentional; full containerisation as well as Kubernetes are not supported.

Notes

  • The time zones must match: the time zone of the database must match that of the operating system on which the Tomcat runs. On Linux, check it with cat /etc/timezone.
  • Two brand names, one product: projectfacts and teamspace are technically identical. The guides usually say projectfacts; with teamspace, replace the name.
